UT161D Digital Multimeter, 1000V, True RMS

Quantity	Unit price
To 4	€71.30*
To 9	€67.74*
To 24	€65.60*
From 25	€62.39*

Prices excl. VAT plus shipping costs

Currently not available (delivery time on request)

Product number:	202572
Manufacturer number:	UT161D
EAN	6935750516164

Are you a reseller, need a large quantity or have a price target?

Apply for a reseller / high volume account to get access to our wholesale conditions. You can also contact our sales team at any time via info@schwick.de or +49 2191 598 280

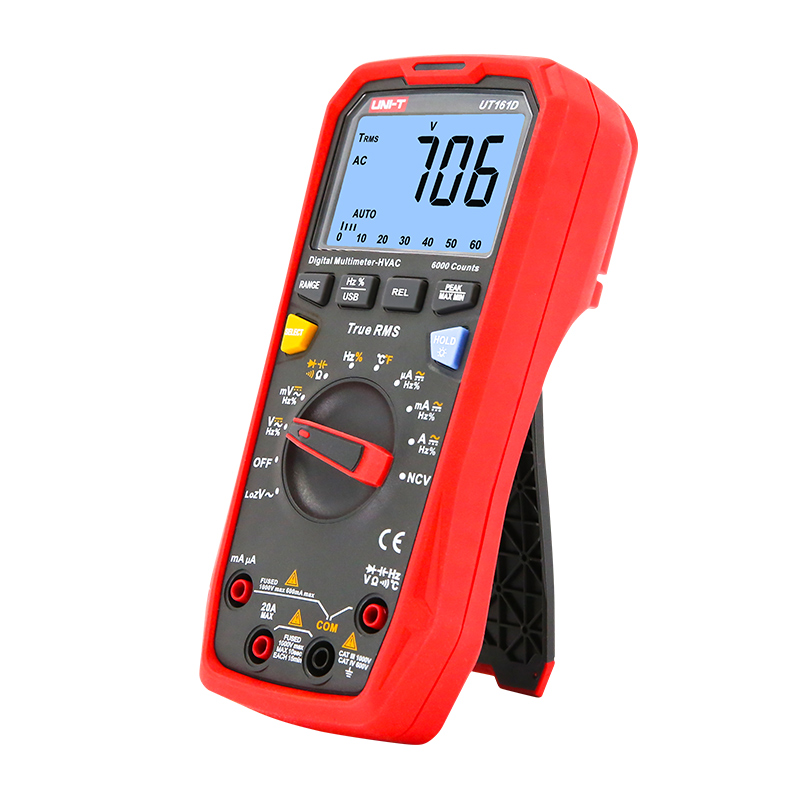

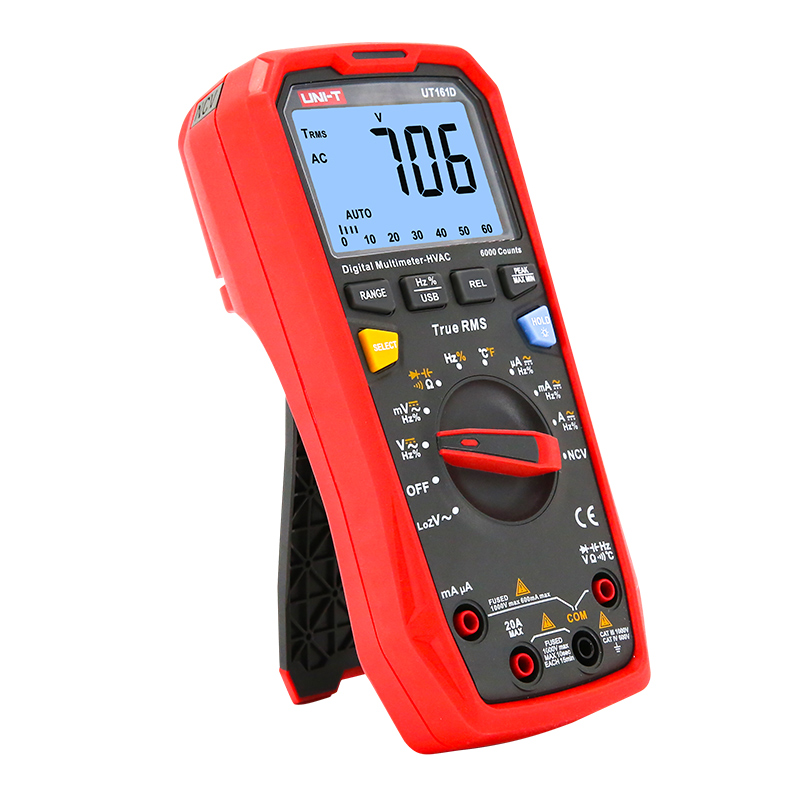

UT161D 1000V Digital Multimeter True RMS Description

The UT161D 1000V True RMS Digital Multimeter is a top-of-the-line Multimeter for measuring AC/DC voltage, AC/DC current, resistance, capacity, temperature, and duty cycle. With an auto range function (device selects the correct measurement range) and a 6000 count display, it provides precise measurements with ease. It can test diodes and continuity, measure voltage without direct contact (NCV), and the LoZ function enables the UT161D to eliminate "ghost" voltage (increases measurement precision). The Multimeter is also equipped with audible and visible alarm warnings, making it ideal for applications with high voltages. For added convenience, the UT161D features an analog bar graph, data hold and peak hold functions, a backlit display, and input protection. For further analysis of the measurement data, the UT161B is equipped with an USB communication port (USB cable is included), which can transfer the data onto your computer. Through the included software, the user can remote control the multimeter, archive and .XLS export the measured values with ease.

With its great functionality, the UT161D premium digital multimeter is an optimal choice for professional users and advanced hobbyists alike.

The UT161D complies with all EU safety standards and has a CAT III 1000V, CAT IV 600V rating.

UT161D 1000V Digital Multimeter True RMS Features

6000 Counts
True RMS
Auto Range with the option of manual range selection
Data hold function with Max/Min/Relative modes
Display with backlight and analog bargraph
USB communication port (cable and software included)
Input protection
Measures AC/DC voltage, AC/DC current, resistance, capacity, temperature, and duty cycle
Diode and continuity test
NCV (non-contact voltage detection) function with audible/visual alarm
LoZ ACV function
Peak Hold function
Gold-plated measurement leads
Scope of delivery: Device, gold plated test leads, USB cable, temperature probe, Manual
